SURFACE MOUNT TECHNOLOGY

First Electronics, Inc. uses surface mount technology and printed circuit board assembly equipment to provide the latest technology capabilities and meet your expectations on quality, service and delivery. We provide complete printed circuit board assembly, testing / inspection and engineering support services. We have the following technology in use at our facility.

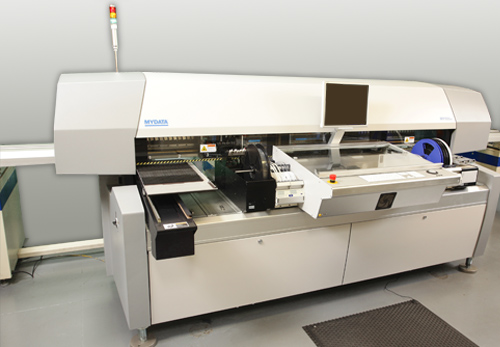

MICRONIC MYDATA - MY100DX-14 PICK AND PLACE MACHINE

  • 180,000 cph within one workcell
  • On-the-fly changeovers
  • Near-production storage and automated replenishment
  • Electrical verification of resistors, capacitors, diodes and transistors
  • Full traceability
  • Feeder capacity up to 160
  • Reliability for 24/7 production
  • All-in-one platform

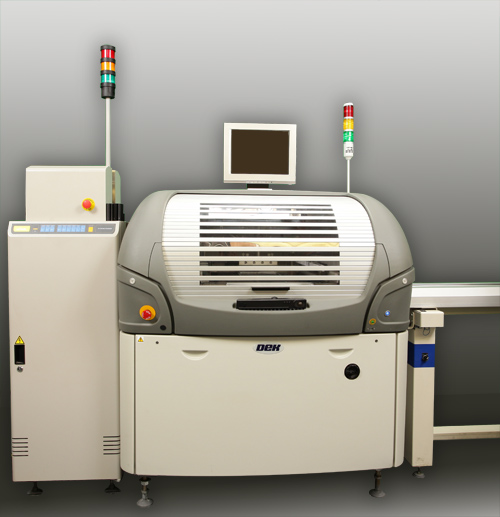

DEK HORIZON 03iX SCREEN PRINTER

  • Process alignment capability 2 Cpk @ ± 25µm 6-Sigma
  • Machine alignment capability 2 Cpk @ ± 12.5µm 6-Sigma
  • 12 second cycle time
  • DEK Camera; increases subject contrast and offers a larger field of view for effective vision data capture to increase throughput. Used for fiducial recognition and alignment, basic and advanced inspection tasks
  • DEK Instinctiv™ V9 user interface including real time feedback, fast set-up, shorter time to first print, less operator training, and easier error avoidance and recovery
  • ISCAN™ Intelligent Scalable Control Area Network; Fast, light and robust internal bus-based communications system delivers responsive and intelligent machine control
  • Standard tooling table
  • Fixed Chase
  • Full size stencil frame capacity; accepts full industry size stencils and is VectorGuard®-ready for faster product changeover
  • Standard board size capability; up to 508mm by 508mm
  • Colour TFT touch screen, keyboard and trackball

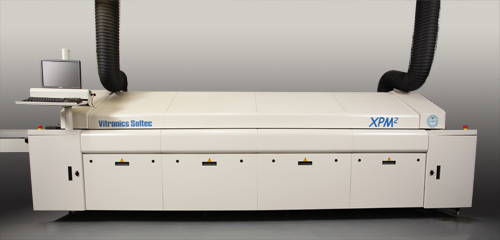

VITRONICS SOLTEC XPM 520 CONVECTION OVEN

  • Top and Bottom Convection Heating and Cooling
  • 350°C maximum operating temperature for Lead-Free processing
  • 20" Belt Conveyor
  • Heavy Duty Frame
  • Individual Cell Inlet and Exhaust™
  • Flux Flow Control™
  • OCS Oven Control Software
  • HIS Host Interface Software
  • Windows™ Operating System
  • DELL PC, Flat Panel Display and Keyboard
  • Precision Profiling™
  • Powered Hood Lifts
  • Over-Temperature Safety System

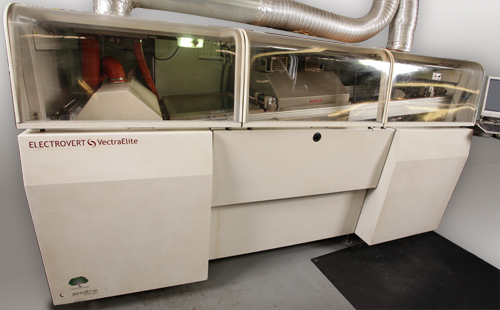

SPEEDLINE VECTRAELITE™ WAVE SOLDER MACHINE

  • Patented ServoJet™ spray fluxing system featuring FluxJet™ technology
  • Four feet of bottom Vectaheat™ forced convection preheat technology
  • Recipe-driven dual wave nozzle technology
  • Patented UltraFill™ with FloLift™ main wave
  • Non-clogging Rotary™ with FloLift chip wave technology
  • Recipe-driven solder pot height adjustment (auto lead clearance)
  • Wet finger cleaning system
  • Recipe-driven auto width adjust conveyor system

PHOENIX X-RAY PCBA|INSPECTOR 100 X-RAY MACHINE

  • High-resolution 2D microfocus X-ray inspection system
  • Designed for inspecting solder joints (e.g. BGA, QFN, QFP, PTH, CSP, Flip Chip) in board assemblies
  • Inspection of electronic and mechanic components and more
  • 100 kV X-ray tube
  • Automated microfocus X-ray inspection of e.g. BGAs, Voiding Calculation

OKI/METCAL BGA-3501 BGA & FINE PITCH REWORK SYSTEM

  • Vision system provides a four-sided view with diagonal overlay
  • Zoom lens magnification 10x to 50x
  • BGA-3582 micro oven
  • Real-time temperature / time controller and profiler
  • Remove & replace BGA, QFP, PLCC, TSOP, SOIC & CSP
  • Re-balling capability

VISION ENGINEERING MANTIS ELITE STEREO INSPECTION MAGNIFIER

  • x2 - x20 magnification options
    (2 in quick change turret)
  • True colour, LED illumination providing up to 10,000 hours of shadow-free viewing
  • Superior ergonomics for fatigue-free viewing and increased
    quality / productivity
  • Superb hand-eye co-ordination for inspection and manipulation tasks
  • Long working distance and large field of view



OKI/METCAL HOT AIR REWORK STATION

  • Improved ergonomics
  • Greater process control
  • SmartHeat® Technology
  • High power, microprocessor controlled power supply
  • TipSaver™ Workstand



WORK ENVIRONMENT

We, at First Electronics, Inc. take pride in our workplace environment. Our open and clean work place allows our employees and equipment to maintain high levels of productivity while sustaining the best quality workmanship. We would like to extend an invitation to visit our facilities and to meet with our team.

At First Electronics, Inc. all ESD sensitive devices are handled with care. Our work environment is geared to protect components against ESD. This includes the use of:

  • Static-dissipative smocks and grounded wrist and foot straps
  • Grounded, static-dissipative workstations
  • Grounded, static-dissipative flooring and mats
  • ESD static shielding containers, packaging materials and bags

QUALITY PRODUCTS ASSEMBLED IN THE U.S.A.

Are you looking to build your product at the lowest cost without sacrificing quality or service? First Electronics, Inc. can provide an estimate of costs to build products to your exact specification. Let us show you what we can do!

Click here to submit a project request
